Trigger Remote Controller Wired Analog Type TRC-T ON/OFF

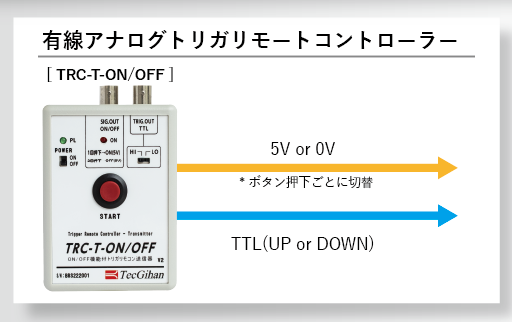

System Configuration Diagram
Wired Trigger Remote Controller TRC-T-ON/OFF
| Product Name | Wired Trigger Remote Controller with ON/OFF Function |
|---|---|
| Model | TRC-T-ON/OFF |
| Type | Wired Trigger Remote Controller |
| Trigger Output |
1 channel / 2 outputs ・On/Off signal (ON: 5V OFF: 0V) ・TTL signal (Positive / Negative logic selectable) |
| Temperature Compensation Range | 10–50°C (No condensation) |
| Operating Temperature Range | 0–70°C (No condensation) |
| Dimensions | 66.5(W)×92.0(D)×28.4(H) mm (excluding protrusions) |
| Weight | 138 g (including two AA batteries) |
| Power Supply | Two AA batteries |
| Accessories |
・Main unit ・Two AA batteries |
