Equipped with high-sensitivity sensors, the system captures subtle movements and visualizes the driver’s state through force measurement. Grip force and steering torque are calculated using data from 20 integrated sensors.

Steering Sensor

At First Glance, It Looks Like an Ordinary Steering Wheel Until now, integrating sensors into a steering wheel often made it larger, making it difficult to manufacture in a standard form.
Tec Gihan’s compact and ultra-thin sensors enable the integration of sensing functionality without compromising the natural design of the steering wheel.

Utilized as an Interface for Communication Between Driver and Vehicle


  • steering

  • This steering sensor is available for trial use at S&VL. S&VL provides contract research services using driving simulators, offering comprehensive support from experimental protocol design tailored to specific objectives through to data analysis.

  • waveform Grip Force and Torque Calculated from 20 Sensors
  • Driver Psychology
    Vehicle Performance Analysis
    ADAS Interface

Appearance

Click to open the PDF

Appearance

Specifications
Product Name Steering Sensor
Force Sensor USL06-H5-100N × 20 units
*Rated capacity can be changed to 50, 200, or 500 N

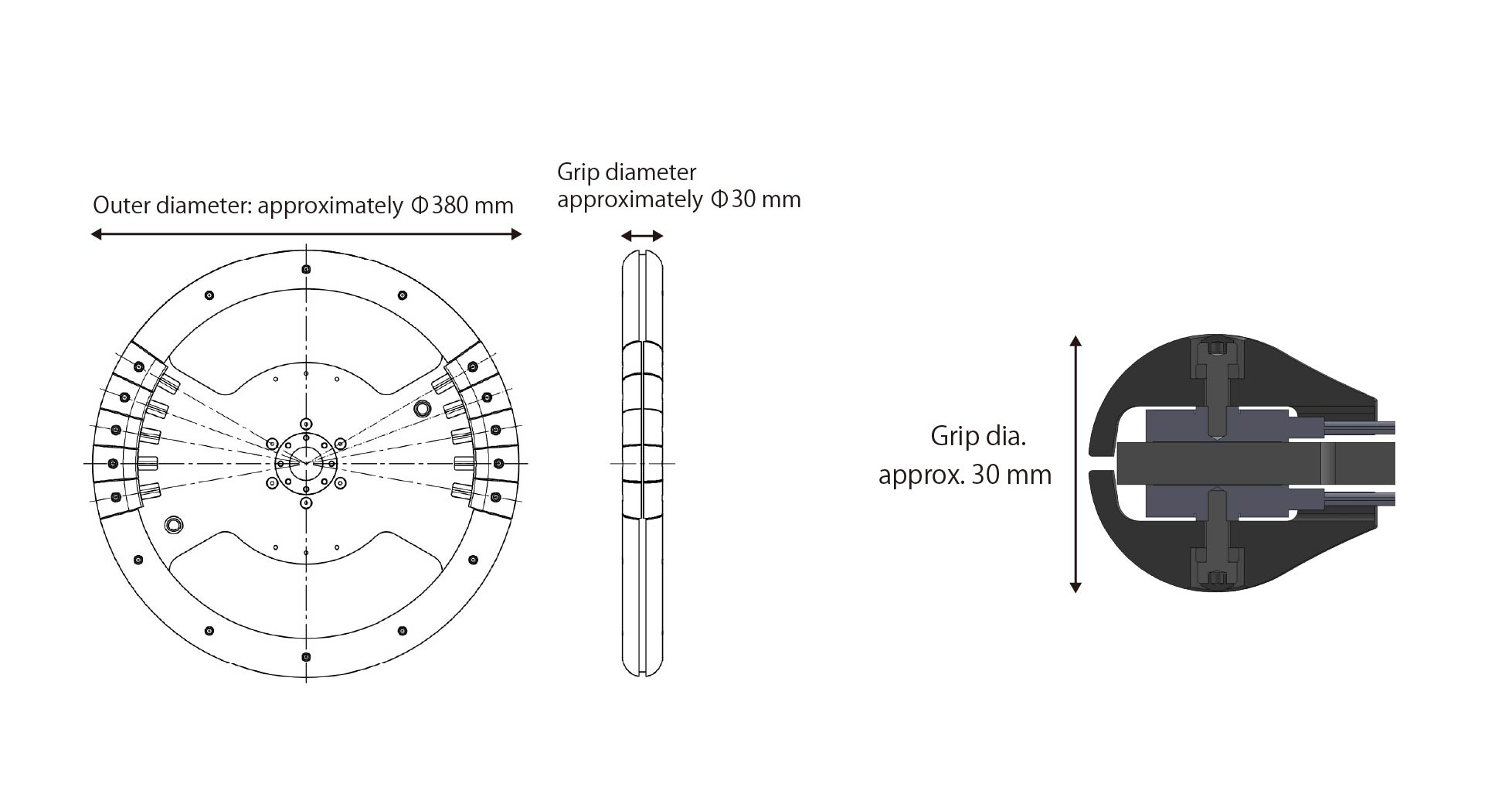

Size / Weight Handle diameter: approx. φ380 Grip thickness: approx. φ30
Interface USB connection (Digital)
BNC connector (Analog output ±10V)
Functions ZERO balance, TRIG (Start recording)
Others Control and measurement software included (Compatible with Windows 10 / 11)
Option Steering Boss 6-Axis Force Sensor
Optional Product Boss 6-Axis Force Sensor
Installed at the connection between the steering wheel and the boss. It measures not only steering torque, but also pushing and pulling forces applied to the steering wheel.
It enables measurement of the forces used to support the body during cornering and lane changes through 6-axis force components (Fx, Fy, Fz, Mx, My, Mz).
  • Steering Boss
Scroll
Size 95 × 95 × 21 mm
Rated Capacity Fx / N ±500 N
Fy / N ±500 N
Fz / N +1000 N
Mx / N·m ±30 N·m
My / N·m ±30 N·m
Mz / N·m ±15 N·m
